Aerogel Insulation Price in India (2026) – ₹125 per sq ft | MG Materials

Aerogel Price List – Per Sq Ft, Per m² and Per Roll

All MGM aerogel blankets share the same silica aerogel chemistry on a glass-fibre / PET needle-felt carrier. The price moves with thickness (more aerogel per square foot), facing and grade. The 10 mm 650-grade blanket is the reference product and the one we hold in stock; the others are priced against it.

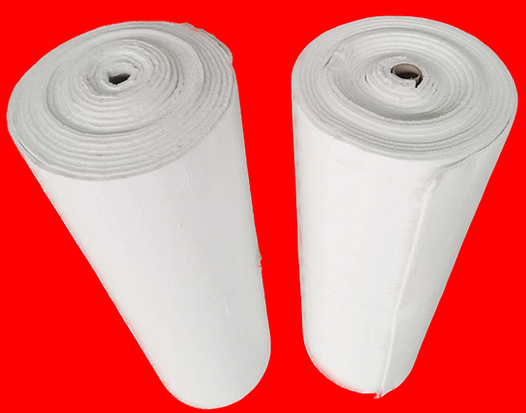

• MGM-AGL-650-10 – 10 mm, unfaced, 1.5 m × 25 m roll: ₹125 per sq ft | ₹1,345 per m² | ≈ ₹50,400 per roll (≈ $565)
• MGM-AGL-650-5 – 5 mm, unfaced, 1.5 m × 40 m roll: price on request (typically 55–60% of the 10 mm rate per sq ft)
• MGM-AGL-650-3 – 3 mm, unfaced, 1.5 m × 50 m roll: price on request (EV pads and die-cut parts quoted per piece)
• MGM-AGL-650-10F – 10 mm, aluminium-foil faced, 1.5 m × 25 m: price on request (small premium over 10 mm plain for the vapour barrier)
• MGM-AGL-ECO-10 – 10 mm economy grade (λ 0.029 W/m·K), 1.5 m × 25 m: price on request (lowest cost per sq ft for 25–300 °C duty)
• 20 mm (two 10 mm layers): 2 × the 10 mm rate per sq ft; supplied as two rolls
• Aerogel panels / boards 10–25 mm, 600 × 1,200 mm: price on request

What Decides the Aerogel Insulation Cost You Pay

• Thickness. Price per sq ft is roughly proportional to thickness, so 5 mm costs about half of 10 mm. Pick the thickness from the heat-loss calculation, not the budget: on hot pipe 10 mm is the norm, on HVAC and building retrofits 5 mm usually does the job.
• Grade. The 650 grade (λ 0.018 W/m·K) is the premium product. The ECO grade (λ 0.029 W/m·K) is 30–40% cheaper per sq ft and is the right choice below 300 °C where the extra performance is not needed.
• Facing. Aluminium-foil or glass-cloth facing adds a small premium but saves a separate vapour barrier or cladding layer on cold lines.
• Quantity. Full rolls are cheaper per sq ft than cut pieces; pallet lots (10+ rolls) and project quantities attract volume discounts.
• Delivery. Ex-Delhi NCR freight to Mumbai, Chennai or Bengaluru typically adds ₹2–4 per sq ft; export shipments are quoted FOB Nhava Sheva or CIF destination port.
• Exchange rate. Aerogel raw material is imported, so list prices are reviewed when the INR/USD rate moves significantly.

Aerogel Cost Calculator – Worked Examples

Use these to budget before you ask for a quote. All figures are material only at ₹125 per sq ft, before GST and freight; add 10% for overlaps and cutting waste on complex geometry.

• 100 running metres of 4" (114 mm OD) steam pipe, one 10 mm layer: ≈ 48 m² of blanket → ≈ ₹65,000 (≈ $730)
• 100 running metres of 8" (219 mm OD) hot-oil line, one 10 mm layer: ≈ 80 m² → ≈ ₹1,08,000 (≈ $1,210)
• A 10 m³ vertical storage tank (≈ 25 m² surface), 10 mm: ≈ ₹34,000 (≈ $380)
• 100 m² of external wall or roof retrofit, 10 mm: ≈ ₹1,35,000 (≈ $1,510) – equivalent to 40–50 mm rockwool in just 10 mm
• 50 m² of chilled-water / HVAC duct, 10 mm foil-faced: ≈ ₹67,000 plus facing premium
• Per EV battery pack (≈ 1.5 m² of 3 mm pads): quoted per die-cut set; typically ₹900–1,500 per pack at volume

Aerogel Price vs Rockwool, PUF and Calcium Silicate – Installed Cost

Per square foot aerogel is the most expensive insulation you can buy; per unit of thermal performance over the life of the plant it is usually the cheapest. The comparison below is for a 4" steam line at 250 °C, material plus cladding, supports and labour, Delhi NCR rates.

• Aerogel 10 mm: material ₹125/sq ft | cladding diameter 134 mm | installed ≈ ₹185–210 per sq ft of pipe surface | life 20+ years, re-usable
• Rockwool 50 mm: material ₹25–40/sq ft | cladding diameter 214 mm (60% more sheet) | installed ≈ ₹150–190 per sq ft | life 5–10 years, replaced when wet
• Calcium silicate 65 mm: material ₹60–90/sq ft | cladding diameter 244 mm | installed ≈ ₹230–280 per sq ft | life 15–20 years
• PUF / PIR 20 mm (cold lines only, max 140 °C): material ₹35–55/sq ft | installed ≈ ₹120–160 per sq ft | life 10–15 years

The gap between aerogel and rockwool closes almost completely once cladding, support steel, rack space and installation hours are counted, and it reverses on the first re-insulation cycle. Where space is tight, where water ingress is a risk, or where the line is inspected often, aerogel is the cheaper decision.

Landed Cost: GST, Freight and Delivery Cities

Aerogel insulation attracts 18% GST (HSN 6806). Material ships from our Delhi NCR warehouse within 24–48 hours for stock items. Indicative freight per 10 mm roll: Delhi NCR, Gurugram, Faridabad, Noida – free above 5 rolls; Jaipur, Chandigarh, Lucknow, Kanpur – ₹600–900; Mumbai, Pune, Ahmedabad, Vadodara, Surat – ₹1,200–1,800; Chennai, Bengaluru, Hyderabad, Visakhapatnam, Kolkata – ₹1,800–2,500. Export to the GCC and Nepal is quoted in USD, FOB or CIF.

Download Aerogel Technical Data Sheets (PDF)

Full properties, thermal conductivity curves, roll sizes and standards for every grade:

• MGM Aerogel Range Data Sheets – all 5 SKUs (PDF, 6 pages)
• MGM Aerogel 650 Blanket – TDS (PDF)
• MGM ECO Aerogel Blanket – TDS (PDF)

How to Get a Firm Aerogel Quote

Send us the pipe sizes or surface area, operating temperature, thickness (or ask us to calculate it), facing, quantity and delivery location. We reply within one working day with a landed price, stock position and dispatch date. Call +91 88606 44605, email cs@mg-materials.com or use the Get Price button on this page. See the full product page: Aerogel Insulation – specifications, applications and FAQs.
